Fuling BD600 VFD Inverter for CNC Spindle Motors

Model BD600

CNC spindle and machine-load VFD series with 1.5–15kW quoted models, V/F and SVC control, PID/PLC functions and RS485 notes.

#VFD #CNCspindle #V/F #SVC #RS485

RFQ WhatsApp

Known model facts

Power range: 1.5–15kW
Voltage options: 220V / 380V
Control modes: V/F and SVC
Functions: PID, PLC and RS485

Product overview

The Fuling / Folinn BD600 series is a broader AC drive platform for buyers who need more control functions than a basic spindle inverter, including vector-control features, PID, PLC/multi-speed, and serial communication.

The current CINKR VFD quotation range covers 1.5kW to 15kW models, with 220V white units, 380V black units, and 3.7kW 220V high-frequency options listed as 1000Hz and 1200Hz.

Use this page for series-level selection, manual screenshot references, control-mode planning, wiring checks, fault direction, and quotation preparation.

Source highlights

Quoted range: 1.5-15kW
Voltage colors: 220V white / 380V black
Control modes: V/F + SVC
Functions: PID / PLC / RS485

Product gallery

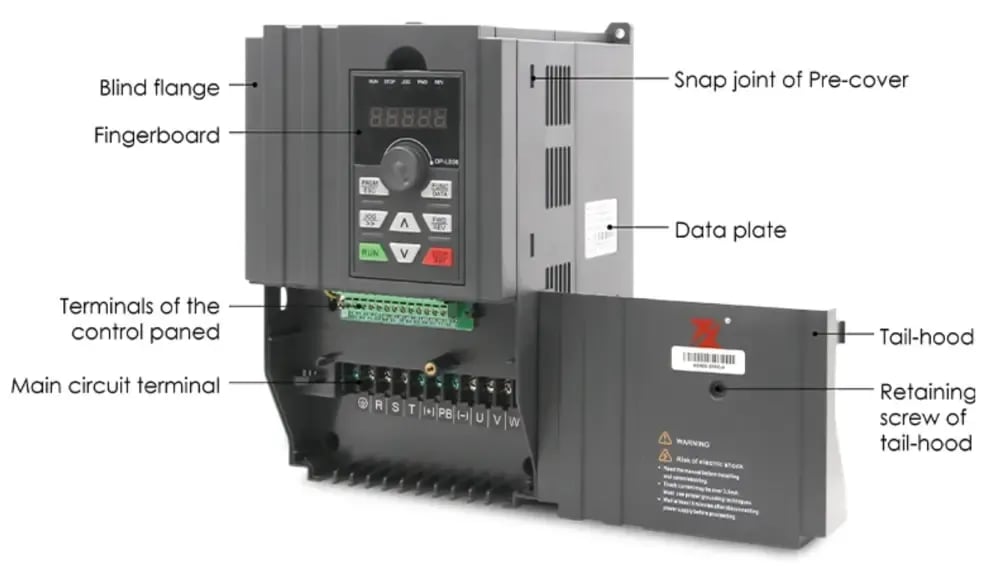

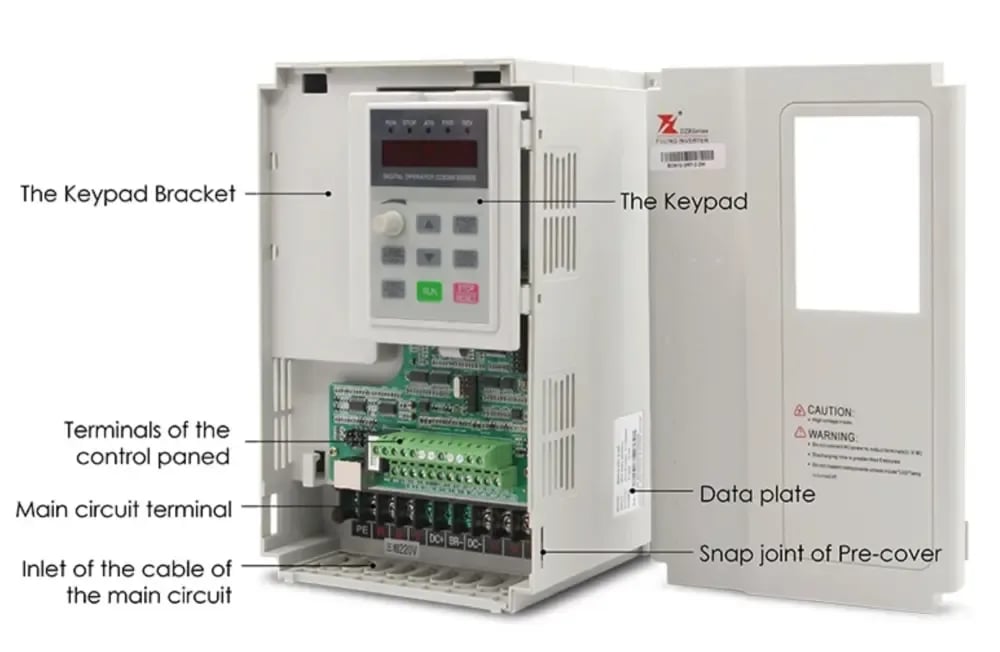

Fuling BD600 VFD Inverter for CNC Spindle Motors gallery reference

Features

V/F and SVC control for machine-load matching
PID, PLC, multi-speed, analog, digital, and RS485 frequency setting options

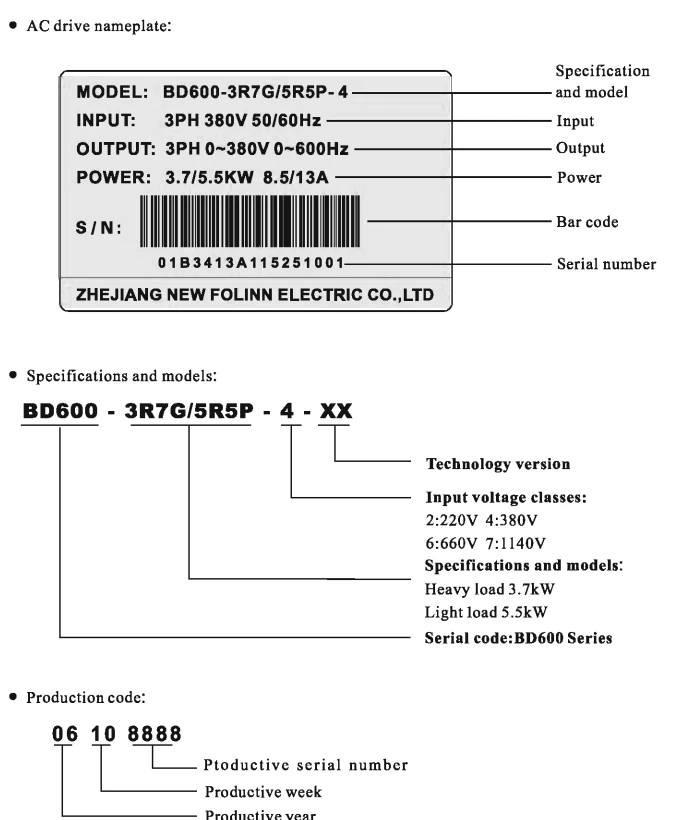

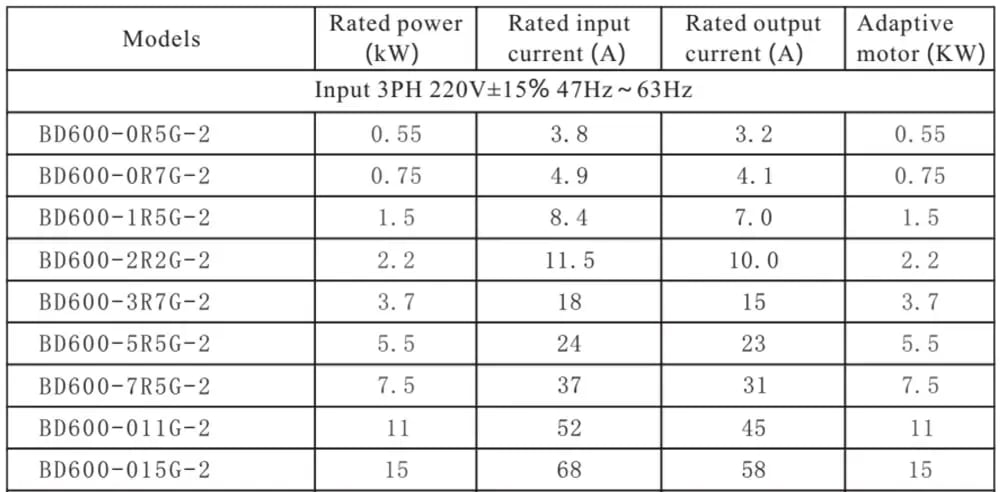

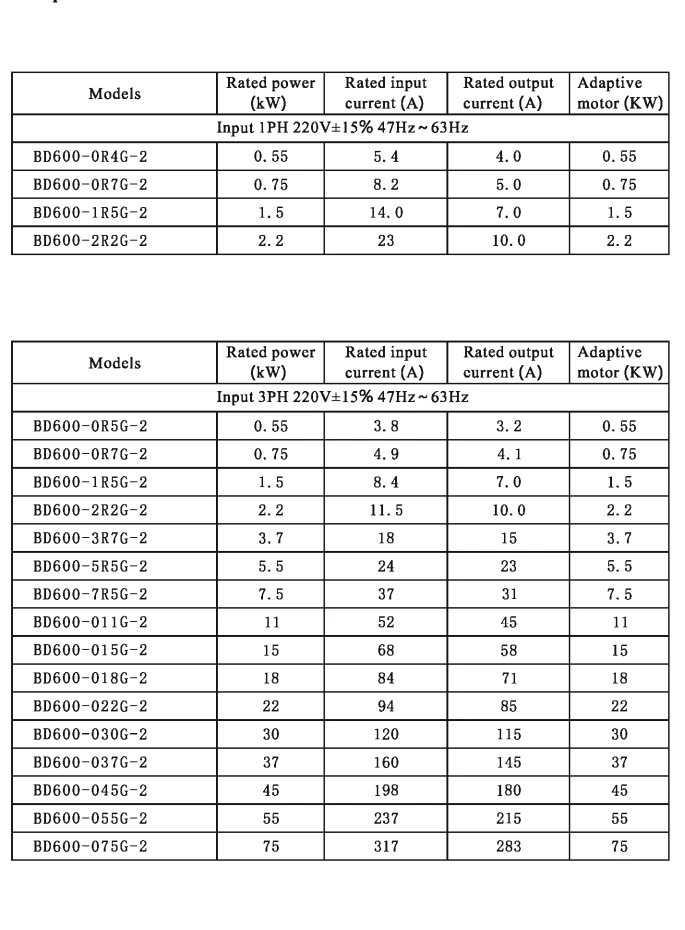

Manual screenshots for nameplate, model table, technical features, terminals, faults, and Modbus
High-frequency 3.7kW 220V choices for spindles requiring 1000Hz or 1200Hz output

Applications

CNC spindle control cabinets
Machine tool replacement drives
Wire drawing and metal processing equipment
Fans, pumps, and machinery loads
High-frequency 3.7kW spindle applications

Selection notes

Confirm whether the machine supply is 220V or 380V before using the color and model notes.
Use 3.7kW 1000Hz or 1200Hz only when the spindle nameplate or machine requirement calls for high-frequency output.
Do not generalize every 380V feature to every 220V model; match the exact BD600 version and manual table.
Send spindle nameplate, old VFD label, terminal wiring photos, and control-method details before quotation.

Frequently asked questions

How is Fuling BD600 different from a basic spindle VFD?

BD600 is positioned as a richer vector-control AC drive platform. It is useful when the cabinet needs V/F or SVC control, PLC/multi-speed logic, PID, RS485, torque features, or high-frequency 3.7kW options.

What does 220V white and 380V black mean?

The source guide notes Fuling 220V units are white and 380V units are black. Still verify the actual nameplate voltage, input phase, output rating, and model code before ordering.

When should I choose the 3.7kW 1000Hz or 1200Hz option?

Choose those only when the spindle or machine requirement calls for high maximum output frequency. Confirm the spindle nameplate, rated frequency, maximum RPM, and controller setting before ordering.

Does BD600 support RS485 control?

The BD600 communication reference includes RS232/RS485 Modbus, master-slave structure, addresses 1-247, broadcast address 0, and RTU frame timing. The host controller still needs matching settings and command mapping.

Can BD600 use PID or PLC/multi-speed functions?

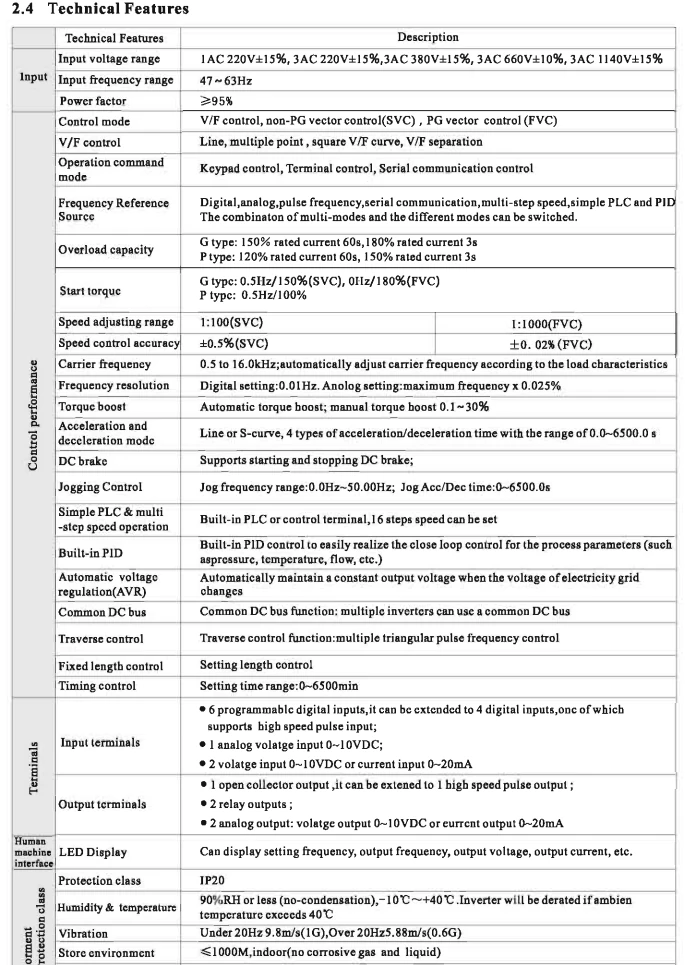

The source notes and technical feature screenshot include PID, simple PLC, multi-step speed, and multiple frequency-source modes. Confirm the exact version and wiring plan before using these functions in a control cabinet.

Is a braking resistor always required?

No. Braking needs depend on motor inertia, deceleration time, load, and inverter model. If the spindle trips overvoltage during deceleration or must stop quickly, confirm braking-unit and resistor requirements before ordering.

What should I send before quotation?

Send spindle power, rated current, voltage, frequency, RPM, old inverter model, machine power supply, control method, frequency requirement, and cabinet wiring photos.
